Batch Plants BF-75

We are a company dedicated to the design and manufacture of concrete plants manufactured under high international quality standards.

Send
Main Fetures

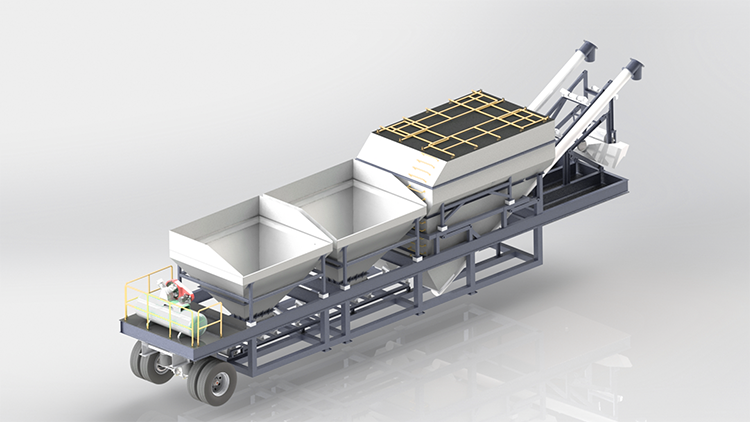

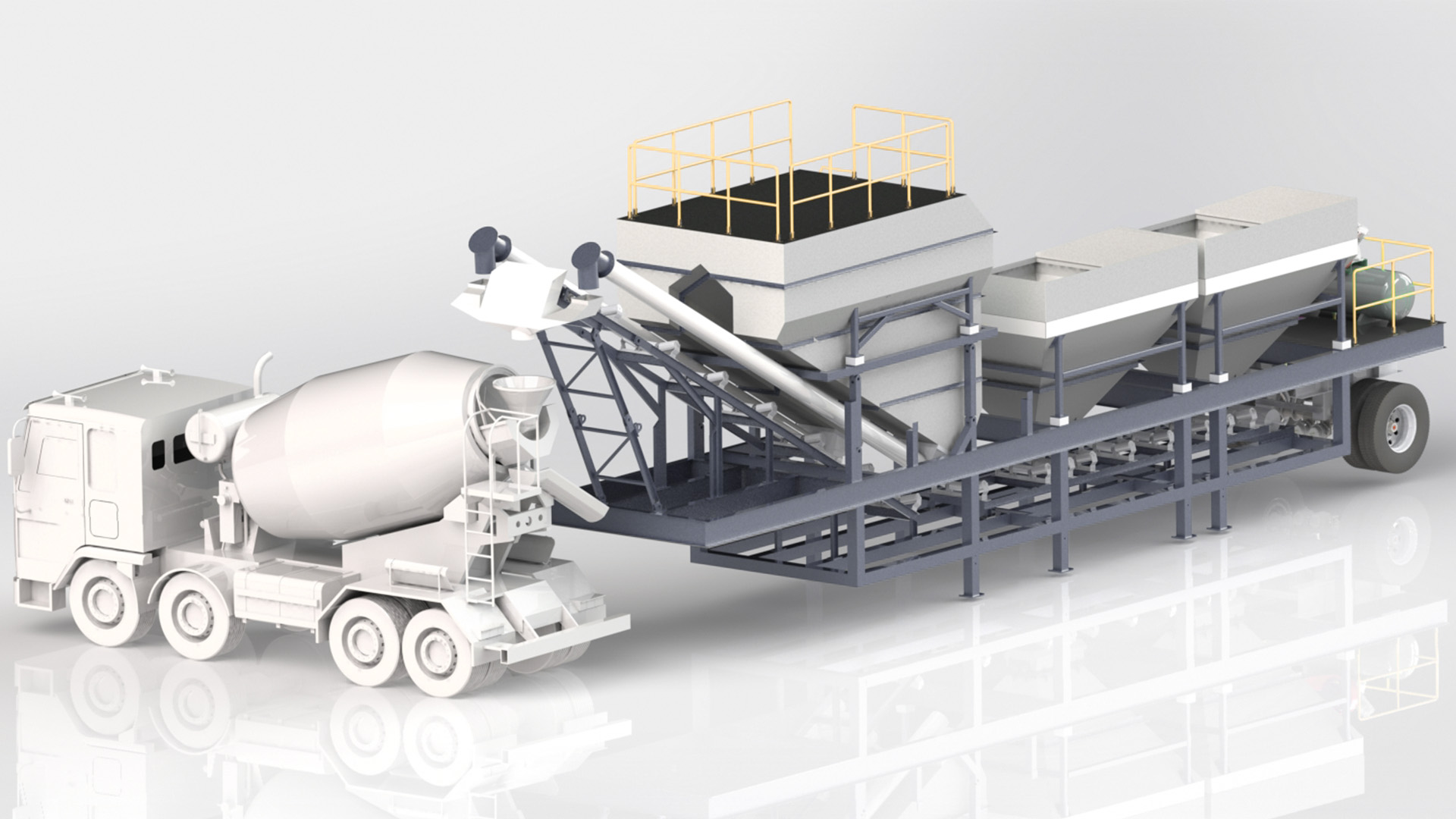

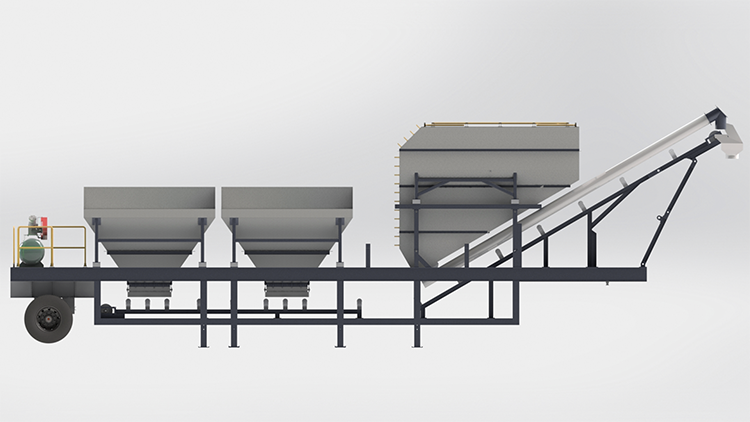

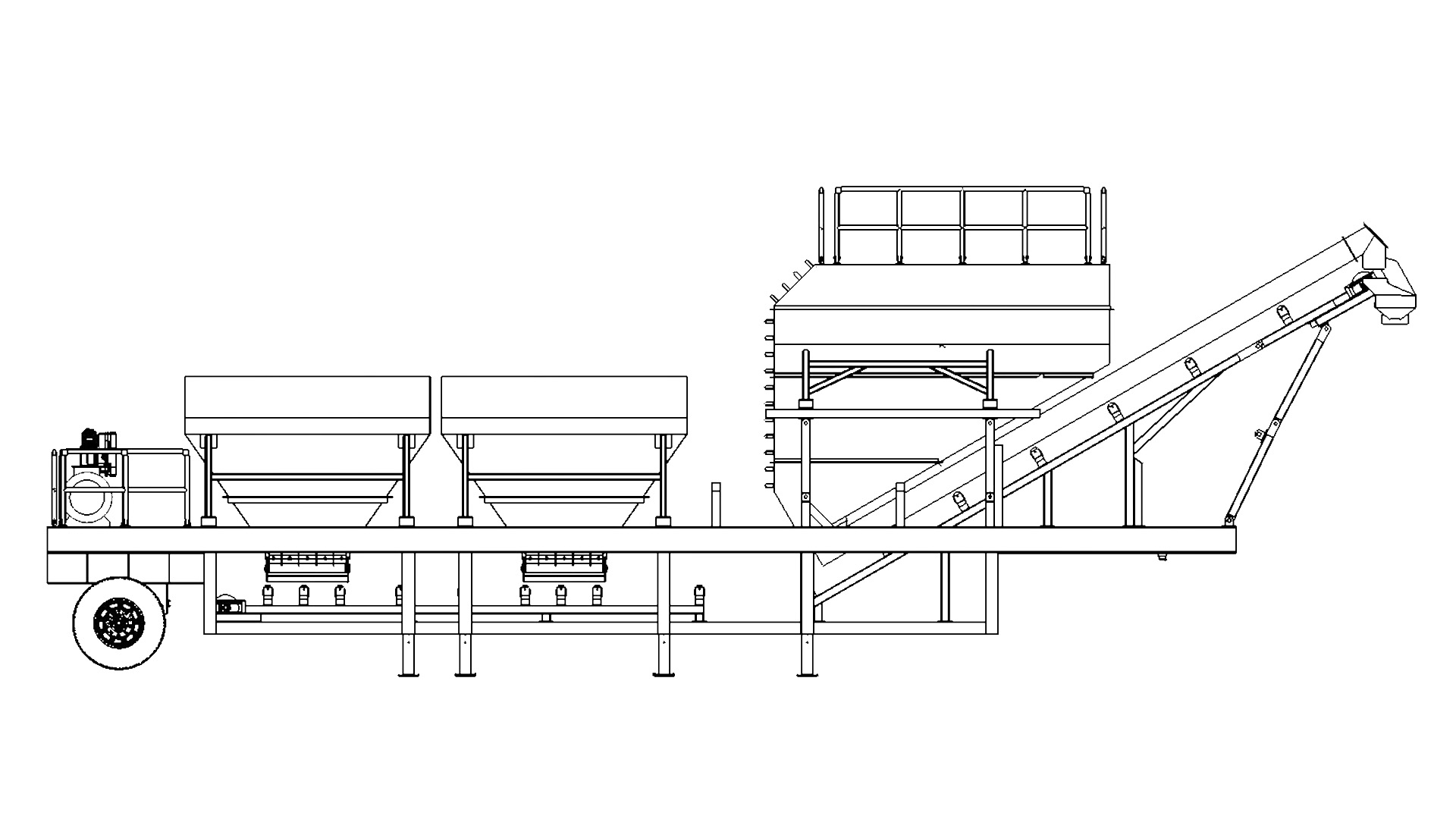

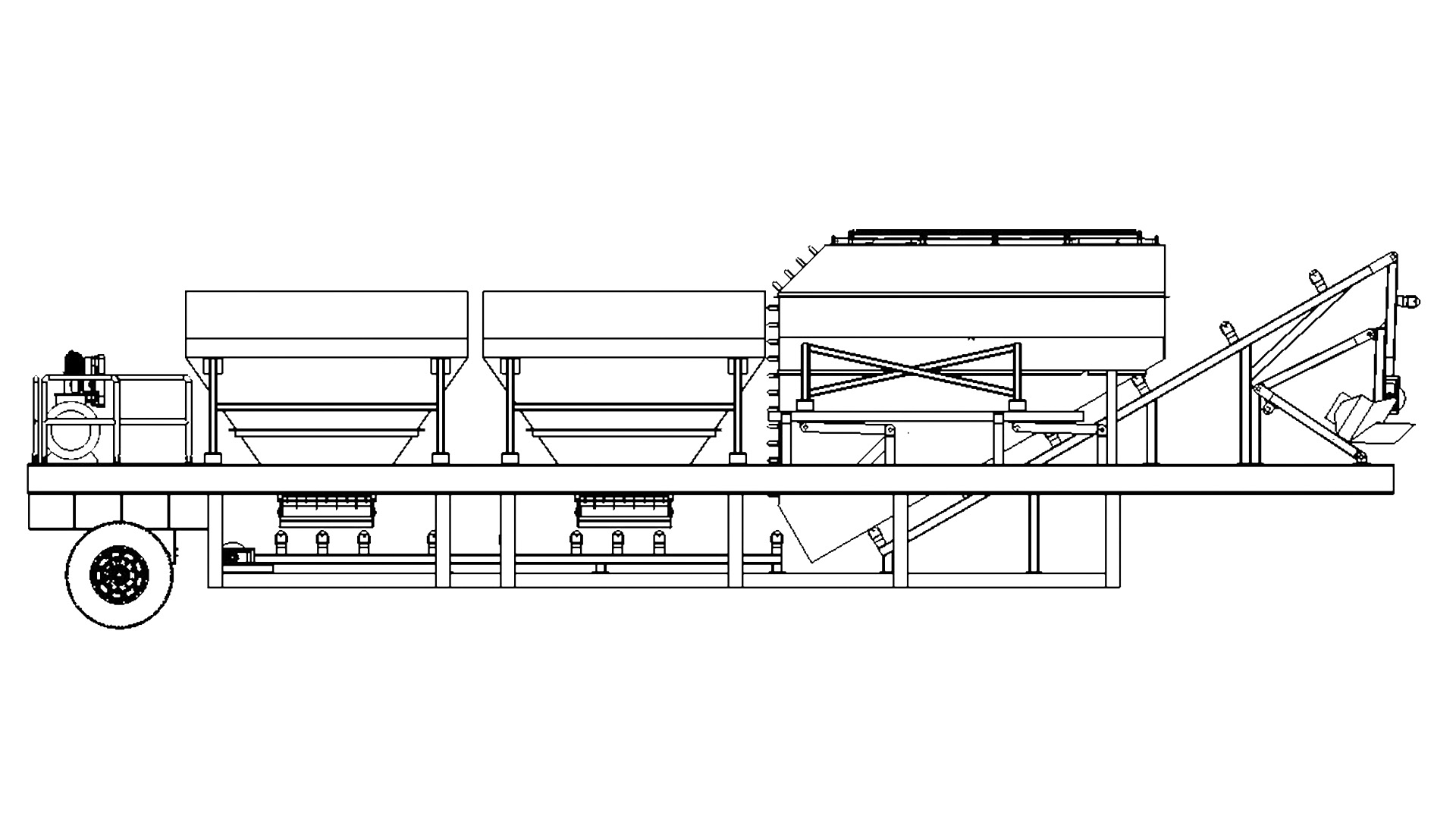

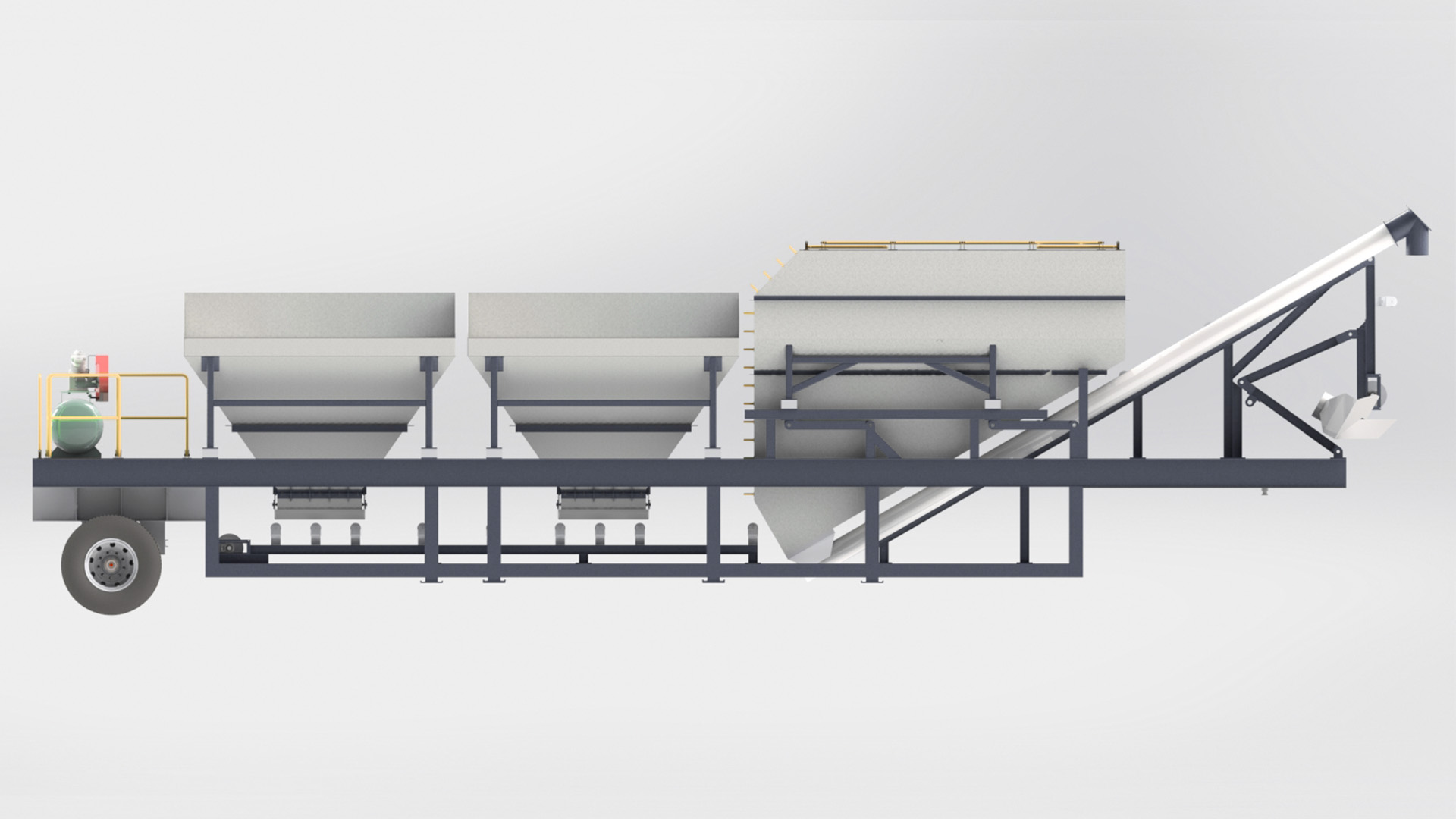

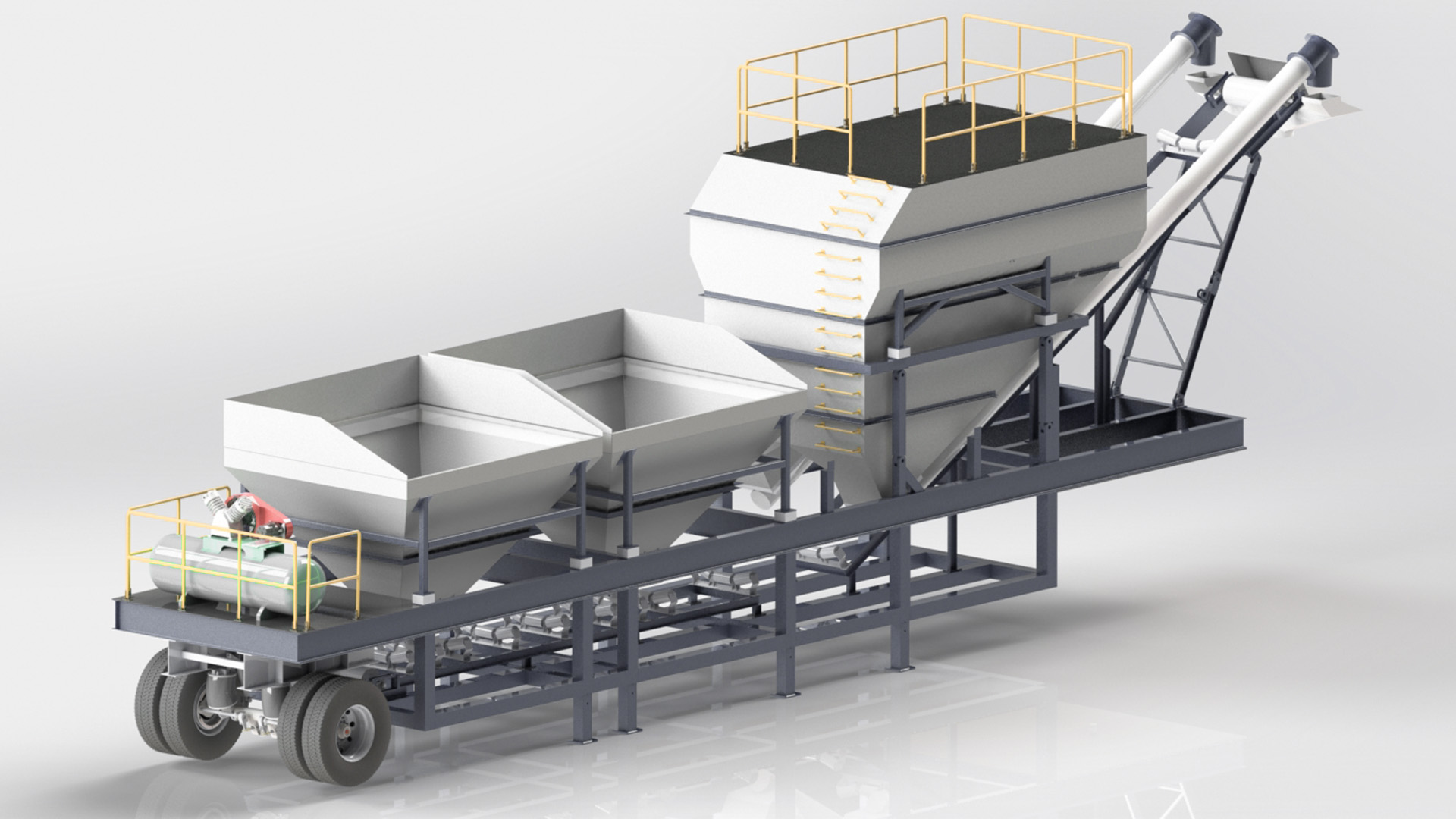

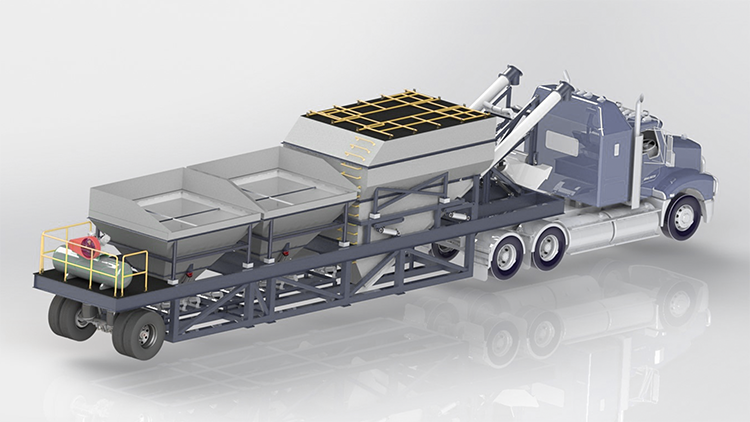

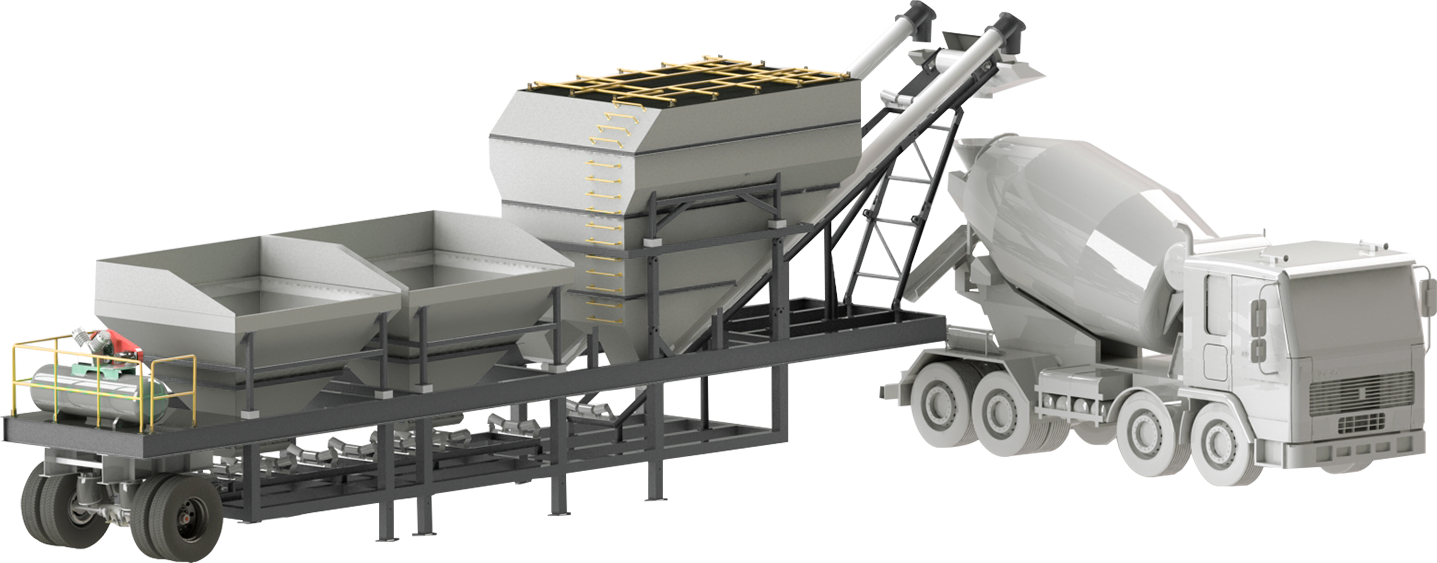

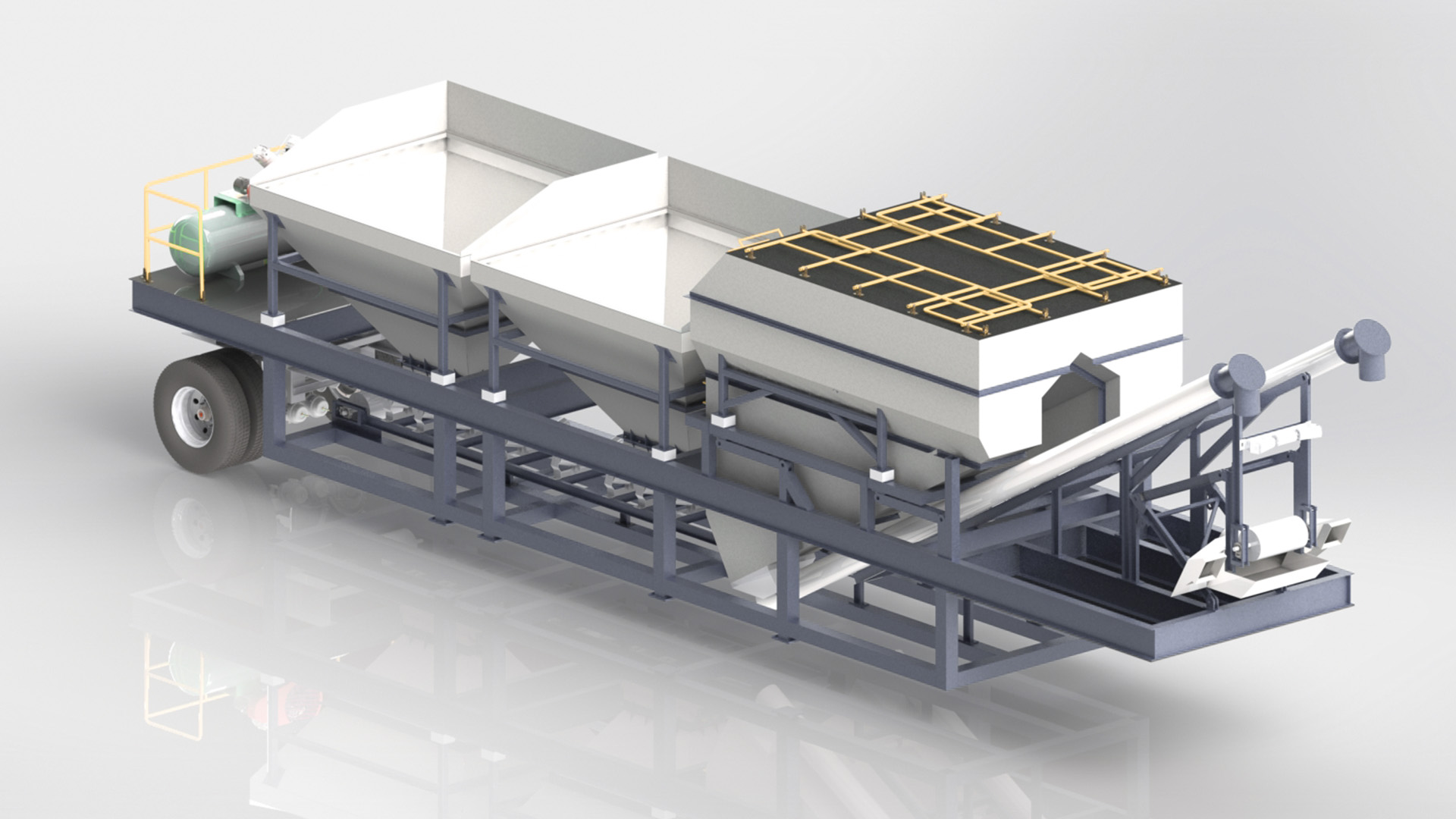

Ultra mobile dosing plant, ideal for large, medium-term works. This all-in-one equipment is easy to transport, thanks to its unfolding system; in 20 min it is ready to change location without the need for cranes.

Includes 2 dosing hoppers of 13 cuyd, built-in 30 ton cement silo with 2 screw conveyors and a 30” conveyor belt. Produces 100 – 130 m3/h.

  • Dosing hoppers: 13 cuyd with clam-type hatch
  • Conveyor belt from 24" to 30" according to choice
  • Cumulative boat: 15 m3
  • 3” 7.5 HP water pump
  • 10 HP air compressor
PRODUCTION PER HOUR 100 - 130 m3/h
NUMBER OF AGGREGATES 2
AGGREGATES STORAGE Available
AGGREGATES SCALE 2 of 13 cuyd
CEMENT SCALE 30 tons
SILO FOR CEMENT 30 ton integrated
AUTOMATION Available
UPGREDES Available
