Batch Plants PM-50

We are a company dedicated to the design and manufacture of concrete plants manufactured under high international quality standards.

Send
Main Fetures

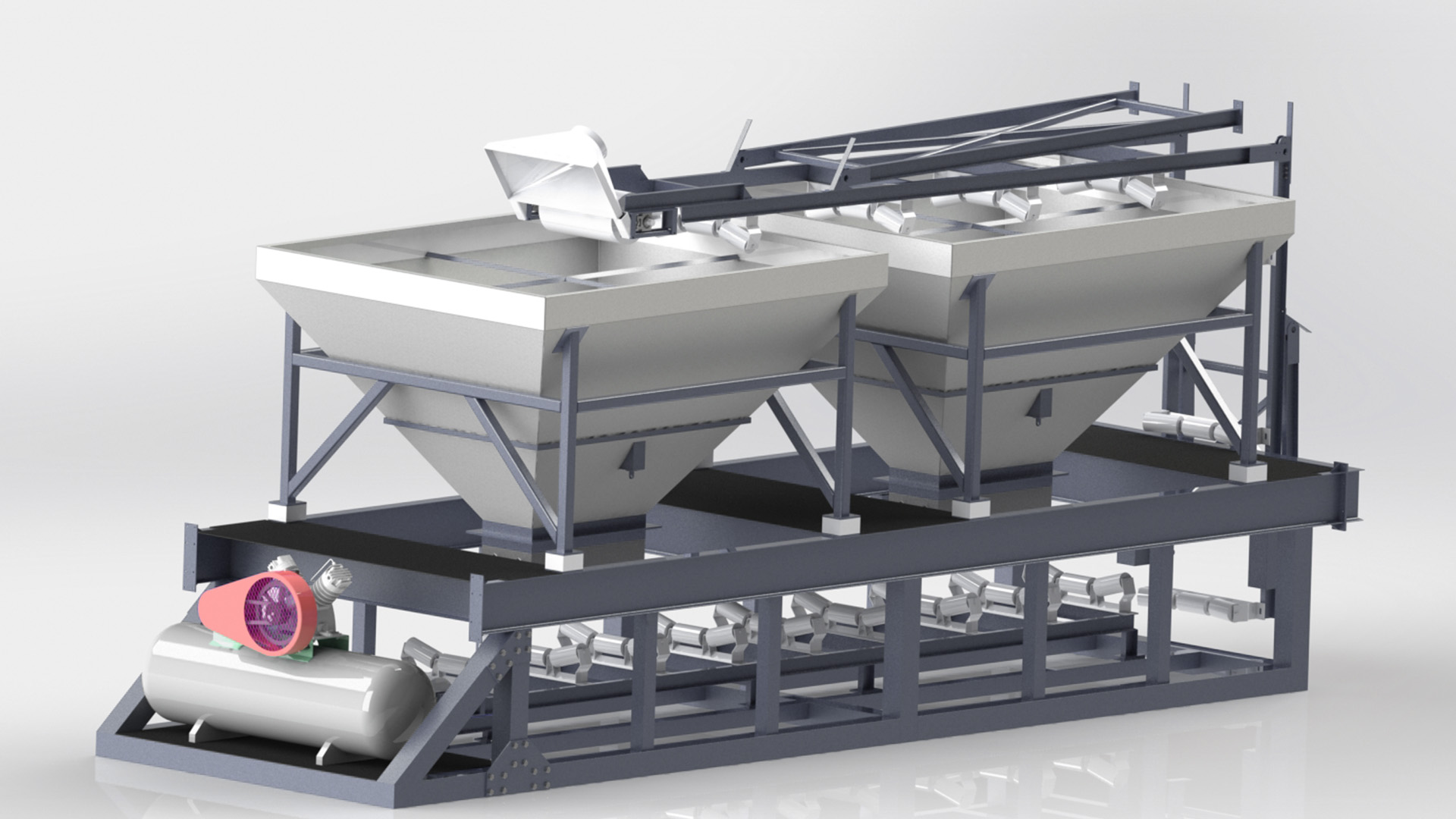

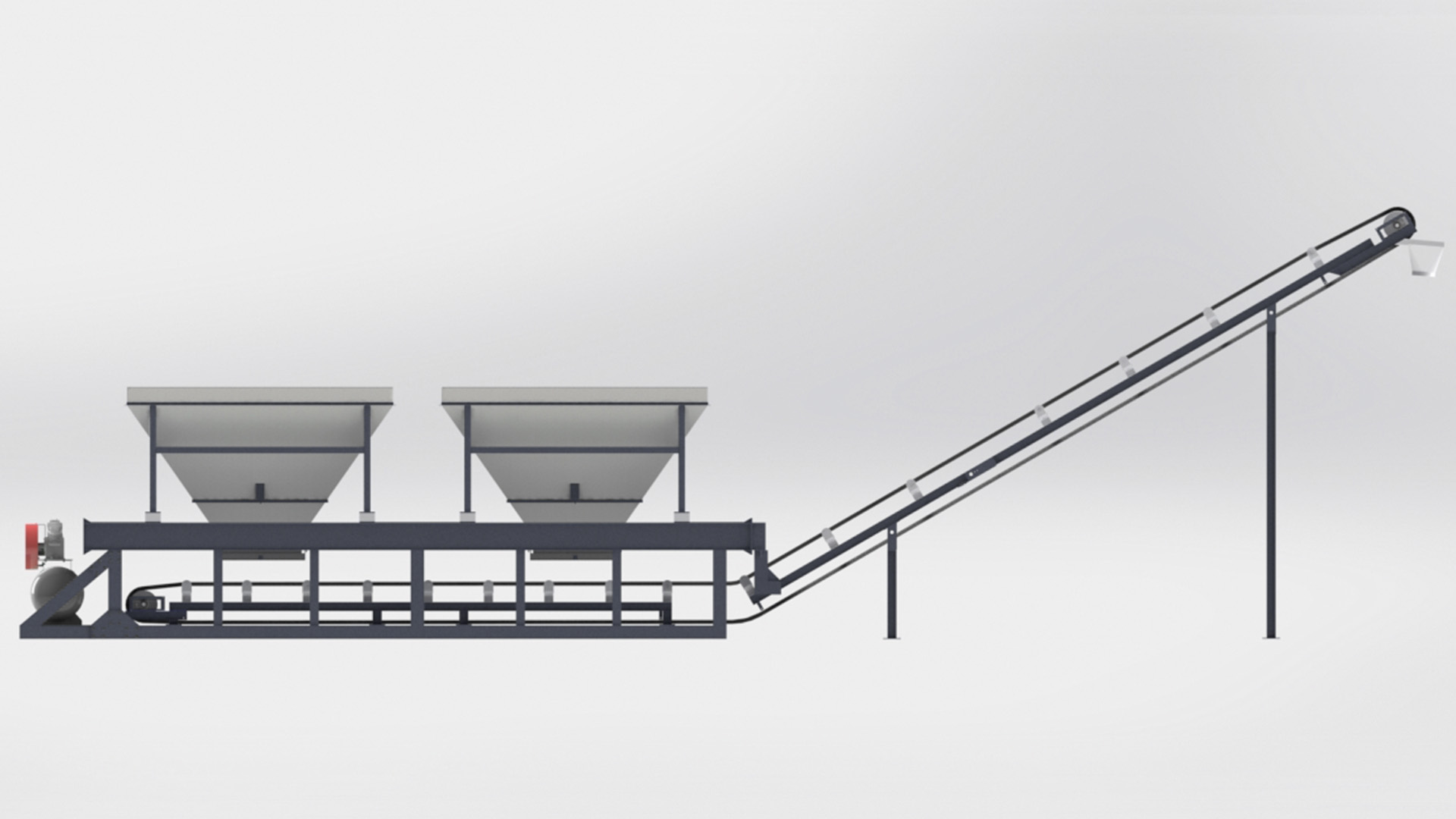

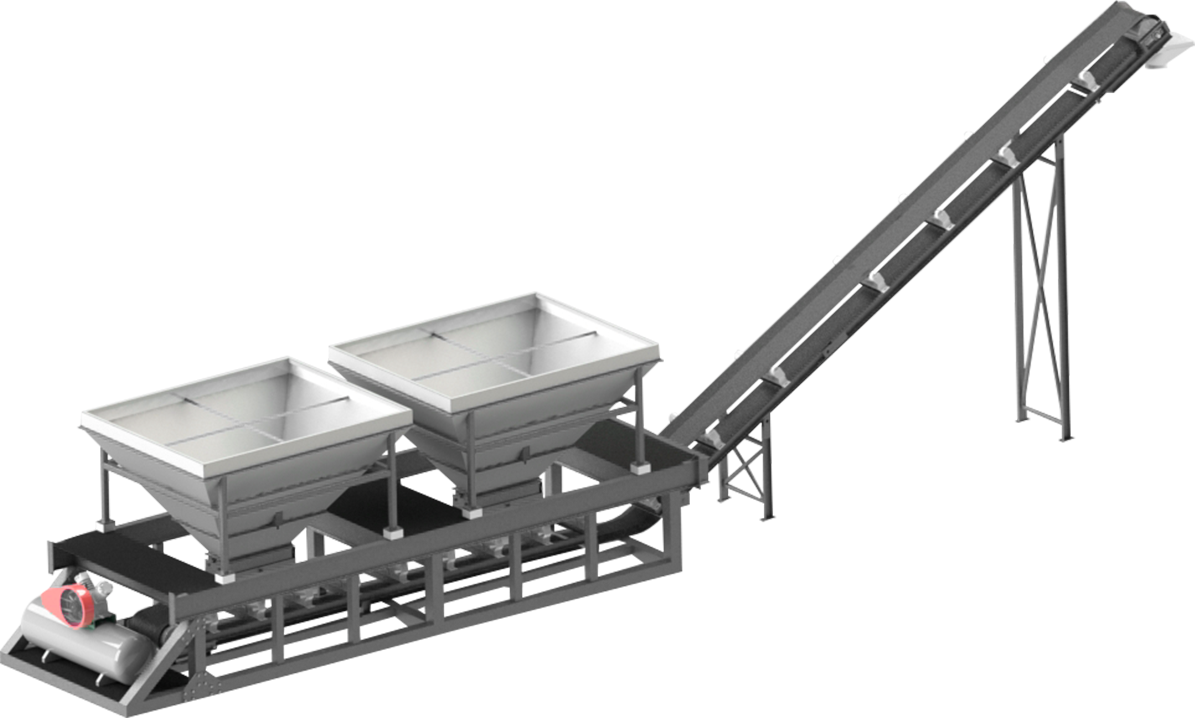

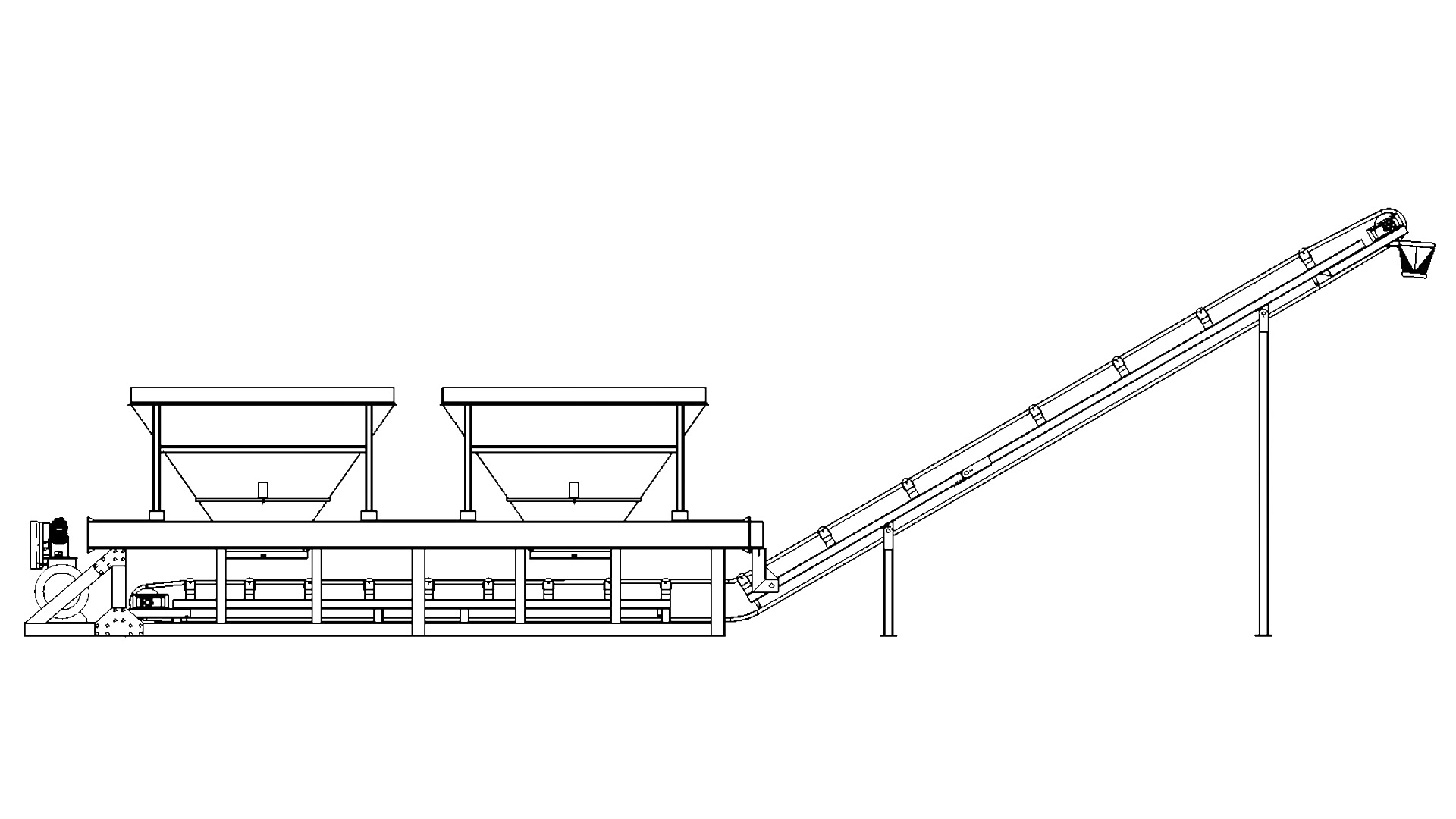

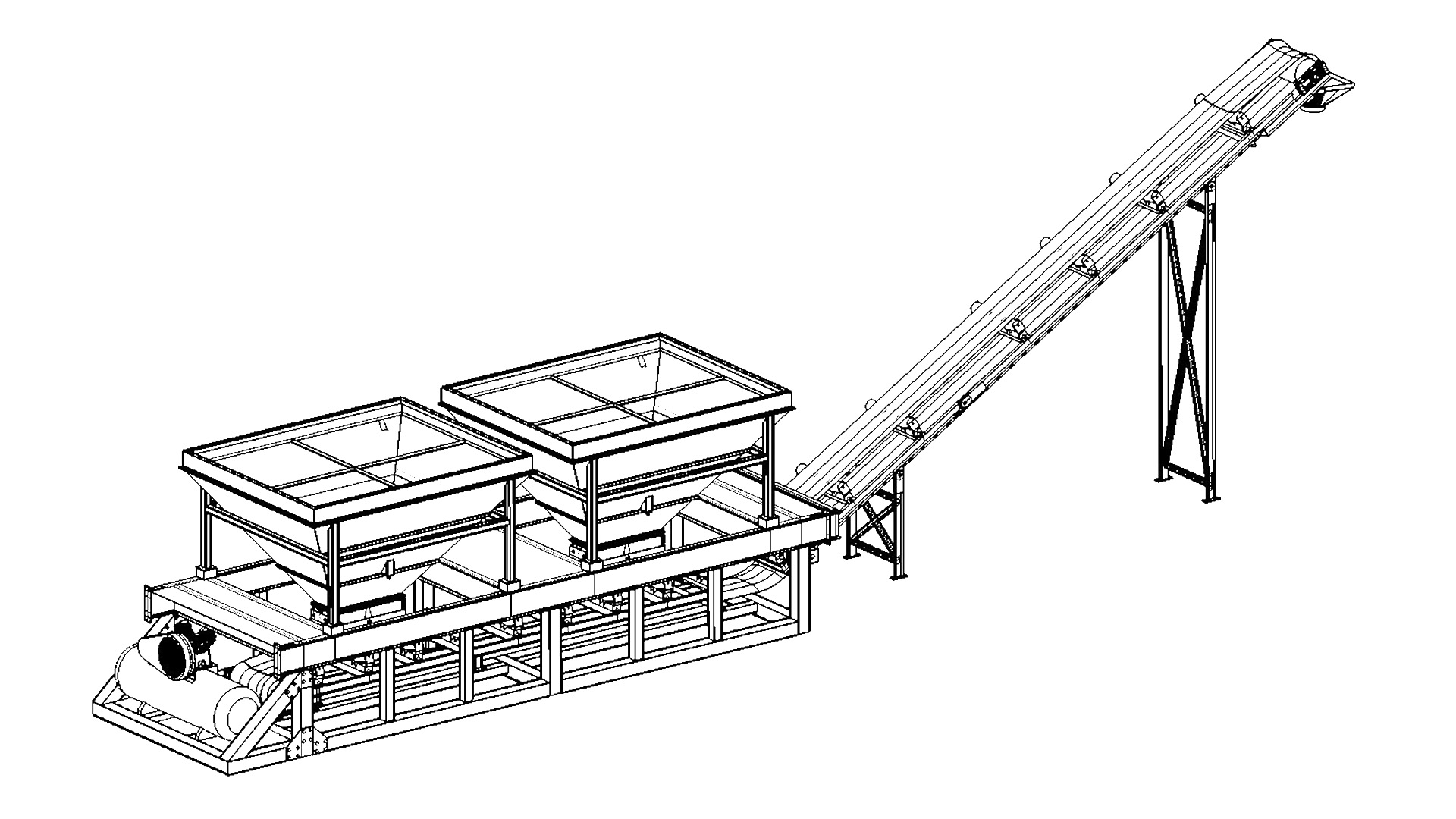

Transportable concrete plant with two weighing hoppers for aggregates. Works decumulatively for 2 aggregates (can expand up to 4 aggregates).

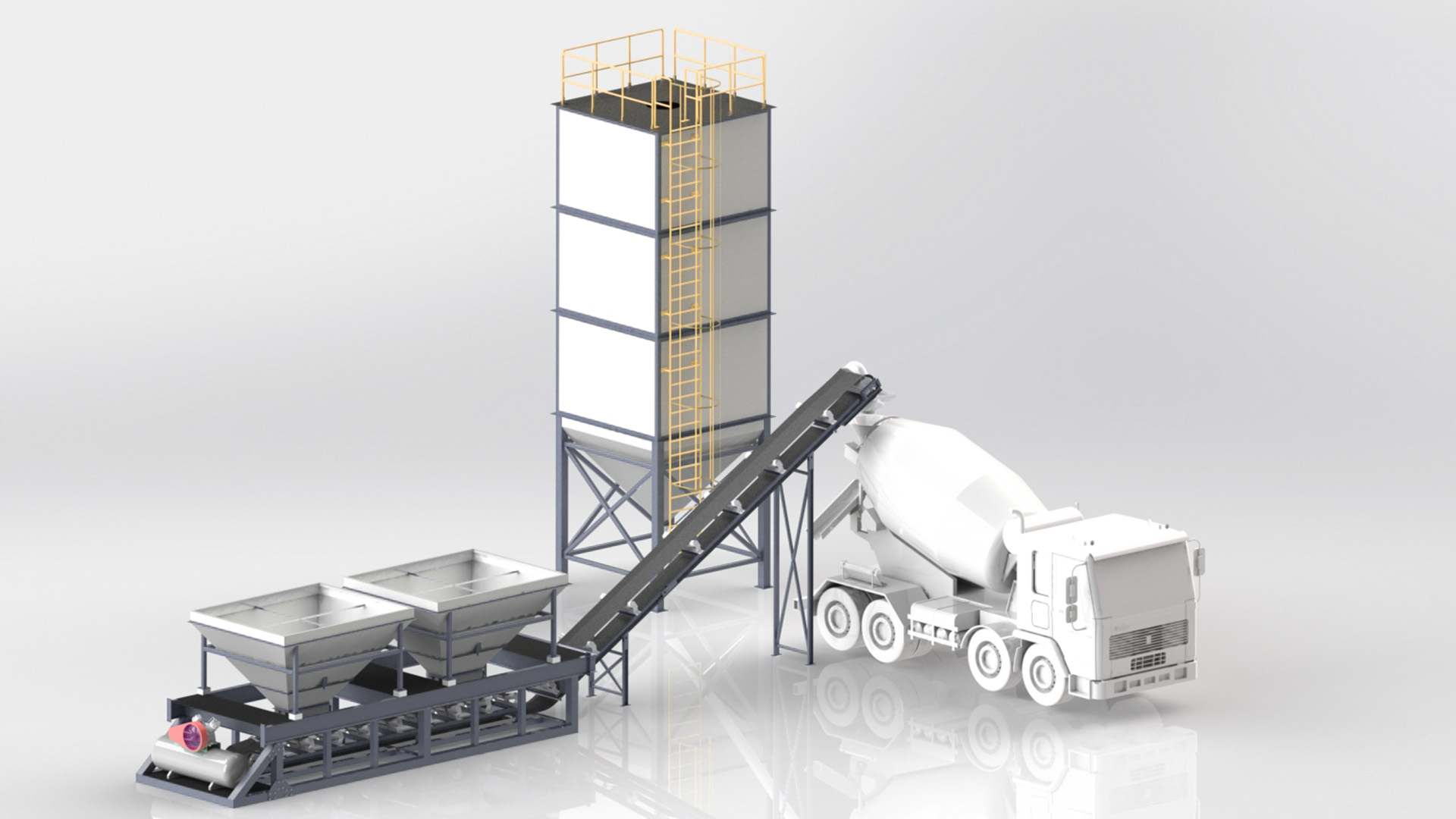

Electronic weighing and dosing system that can be manually or automated in a reliable and exact manner. It can incorporate a mobile or stationary cement silo from 40 ton to 80 ton. Includes system for easy transport. Produces 65 – 100 cuyd.

This equipment is modular so it can incorporate one or two more dosing hoppers, if required.

  • 2 Hoppers: 13 cuyd with clam type gate
  • 24” conveyor belt with 7.5 HP geared motor.
  • 3” water pump with 7.5 HP motor
  • 5 HP air compressor
PRODUCTION PER HOUR 65 - 100 cuyd
NUMBER OF AGGREGATES 2 - 4
AGGREGATES STORAGE N/A
AGGREGATES SCALE 2 - 4 15 tons each
CEMENT SCALE 8500 LBS
SILO FOR CEMENT 40 ton
AUTOMATION Available
UPGREDES Available
