Batch Plants PM-75

We are a company dedicated to the design and manufacture of concrete plants manufactured under high international quality standards.

Send
Main Fetures <

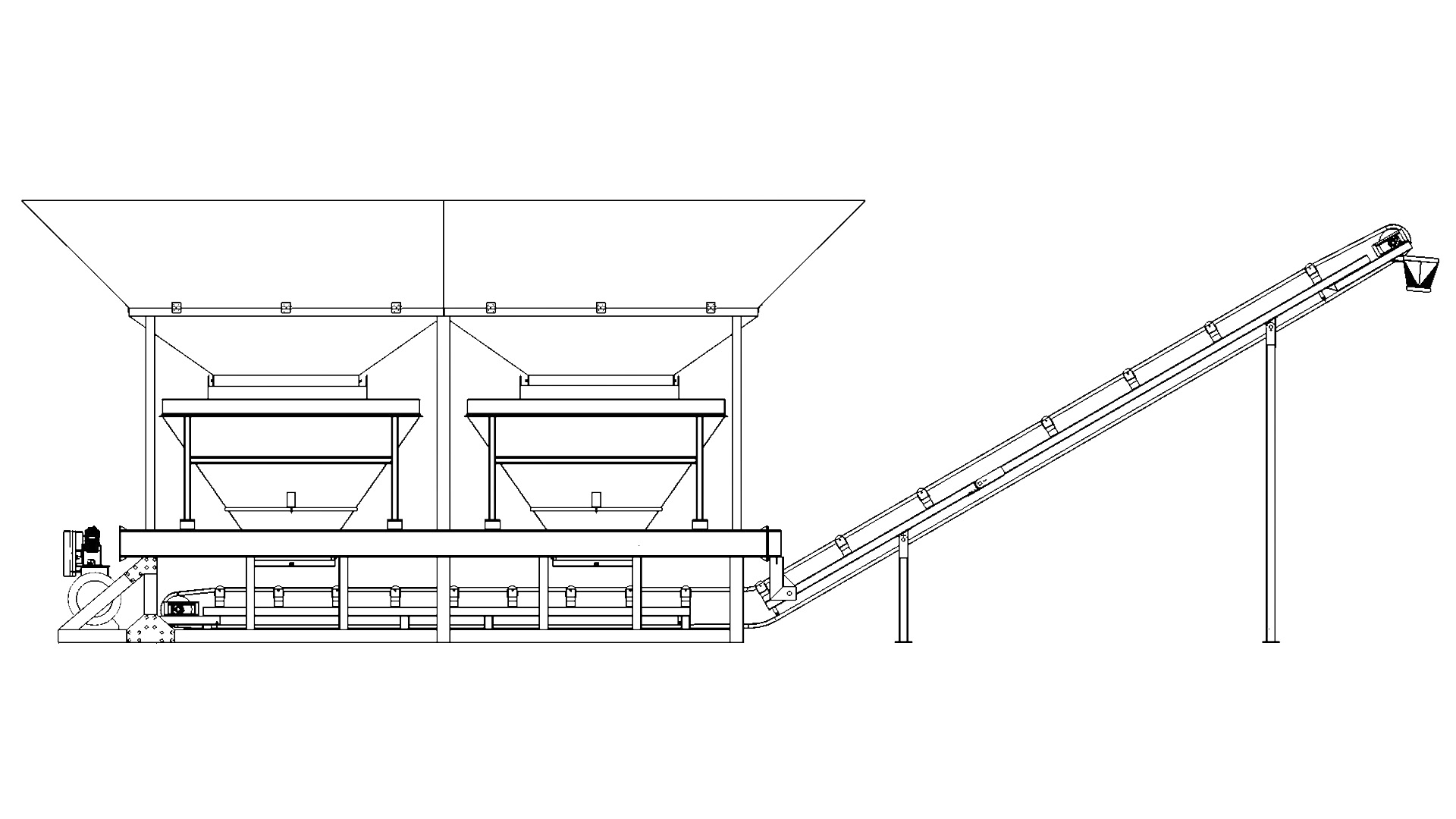

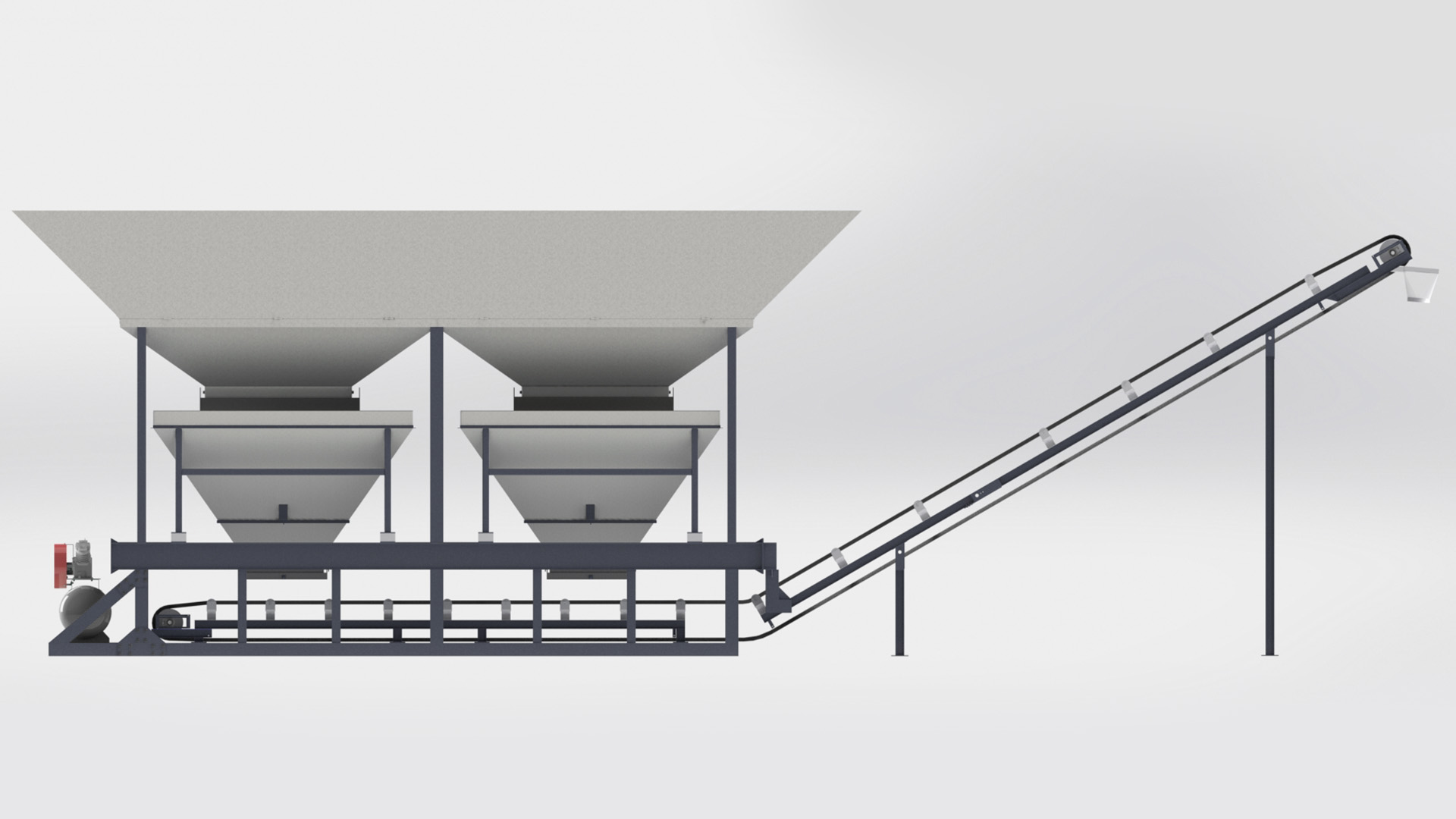

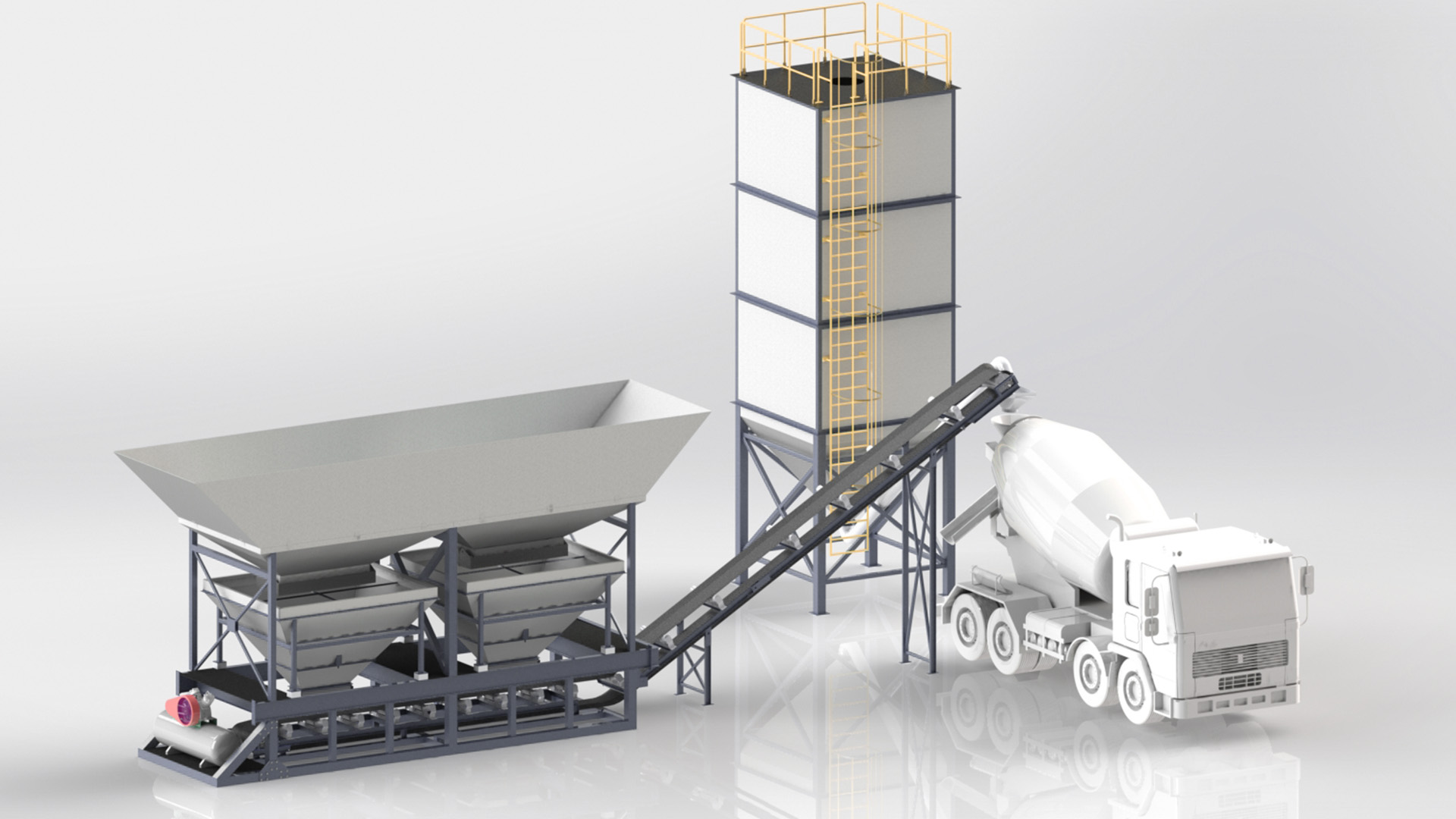

Accumulative stationary concrete batching plant with 2 independent batching hoppers for weighing aggregates and a cumulative aggregate ship for greater capacity.

Cement silo from 40 to 80 ton capacity. Produces 100 – 130 cuyd.

This equipment can incorporate a receiving hopper and conveyor belt for fast and effective filling of the ship, or it can be worked with a ramp. Available

  • Dosing hoppers: 13 cuyd with clam-type hatch
  • Conveyor belt from 24" to 30" according to choice
  • Cumulative boat: 15 m3
  • 3” 7.5 HP water pump
  • 10 HP air compressor
PRODUCTION PER HOUR 100 - 130 cuyd
NUMBER OF AGGREGATES 3 - 4
AGGREGATES STORAGE 30 m3 / 50 tons
VOLUME PER BATHC 10 cuyd
CEMENT SCALE 8,500 LBS
SILO FOR CEMENT 40 ton
AUTOMATION Available
UPGREDES Available
